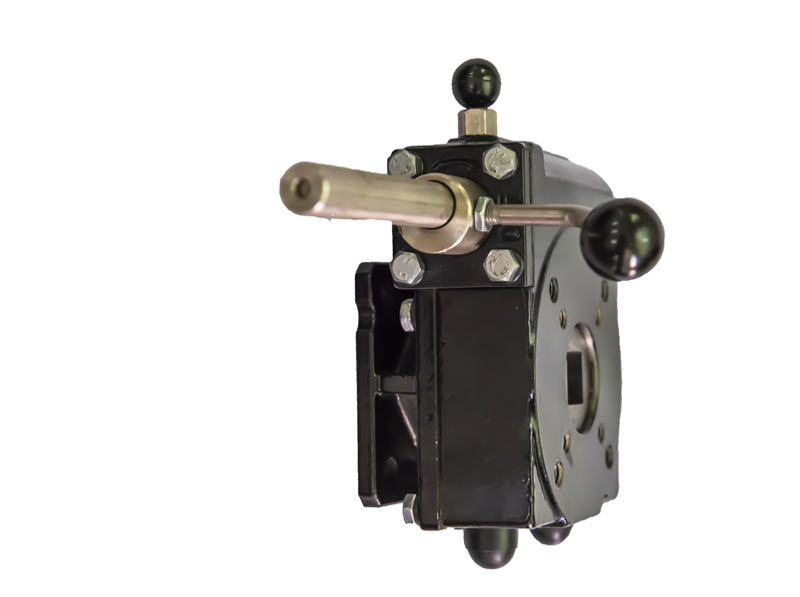

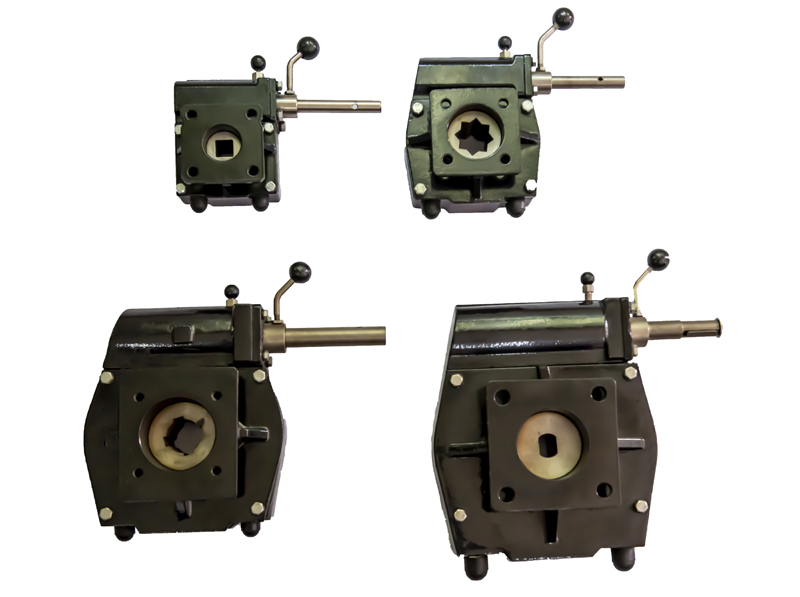

MLHJ series declutch gear box

  • MLHJ series declutch gear box
  • MLHJ series declutch gear box
  • MLHJ series declutch gear box
MLHJ series declutch gear boxMLHJ series declutch gear boxMLHJ series declutch gear box

MLHJ series declutch gear box

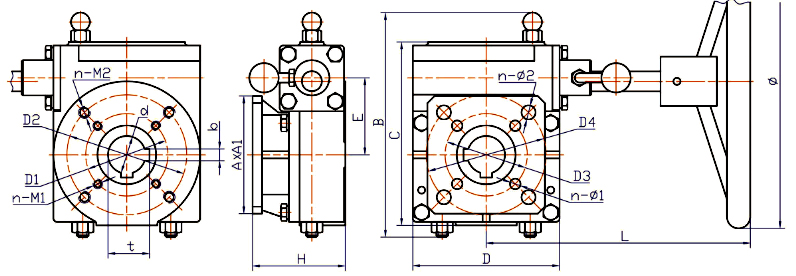

Model d b t D1 n-M1 D2 n-M2 A×A1 D3 n-φ1 D4 n-φ2 Suitable Fastener H H1 φ H×H L B C D E
MLHJ26 18 6 21 70 4-M8 64×64 70 4-φ9 M8×30 82 24 200 14×14 182 166 130 104 50.5
22.2 8 26 70 4-M8 64×64 70 4-φ9 M8×30 82 24 200 17×17 182 166 130 104 50.5
MLHJ38 22.2 8 26 70 4-M8 100×70 70 4-φ9 M8×30 79 23 200 17×17 221 191 156 125 65.5
32 10 35 70 4-M8 102 4-M10 100×100 70 4-φ9 102 4-φ12
M8×30
M10×35
79 23 200 22×22 221 191 156 125 65.5
38 10 41 102 4-M10 110×110 125 4-φ14 M12×40 82 26 250 27×27 225 191 156 125 65.5
45 14 49 102 4-M10 130×130 140 4-φ18 M16×45 88 32 300 36×36 225 191 156 125 65.5
MLHJ54 36 10 39 102 4-M10 125 4-M12 110×110 102 4-φ12 125 4-φ14
M8×35
M12×40
86 25 250 27×27 233 234 200 175 85.5
48 14 52 102 4-M10 140 4-M16 130×130 140 4-φ18 M16×55 95 33 300 36×36 233 234 200 175 85.5
60 18 64 140 4-M16 156×156 165 4-φ22 M20×60 103 41 300 46×46 233 234 200 175 85.5
MLHJ80 48 14 52 140 4-M12 135×156 140 4-φ18 M16×55 114 35 300 36×36 271 305 279 234 123
60 18 65 165 4-M16 156×156 165 4-φ22 M20×60 114 35 400 46×46 277 305 279 234 123
MLHJ78 48 14 51 140 4-M12 135×156 140 4-φ18 M16×55 120 34 600 36×36 367 363 322 276 142
60 18 65 165 4-M16 156×156 165 4-φ22 M20×60 120 34 600 46×46 367 363 322 276 142
MLHJ320 75 20 80 254 8-M16 254 8-φ18 244 500 464 435 386 300 156
MLHJ410 110 28 116 298 8-M20 298 8-φ22 278 96 700 586 592 544 415 225




Model Ratio Input torque (N.M) Output torque (N.M) Hand-wheel dia. (mm). Weight (kg)
MLHJ26 26:1 60 300 φ200 6.7
MLHJ38 38:1 60 550 φ200 13
75 620 φ250
90 700 φ300
MLHJ54 54:1 100 1000 φ250 20
120 1200 φ300
MLHJ80A 80:1 110 1600 φ300 27
140 2000 φ400
MLHJ78 78:1 200 3100 φ600 37
MLHJ320 320:1 120 7000 φ500 105
MLHJ410 410:1 220 15000 φ700 239
