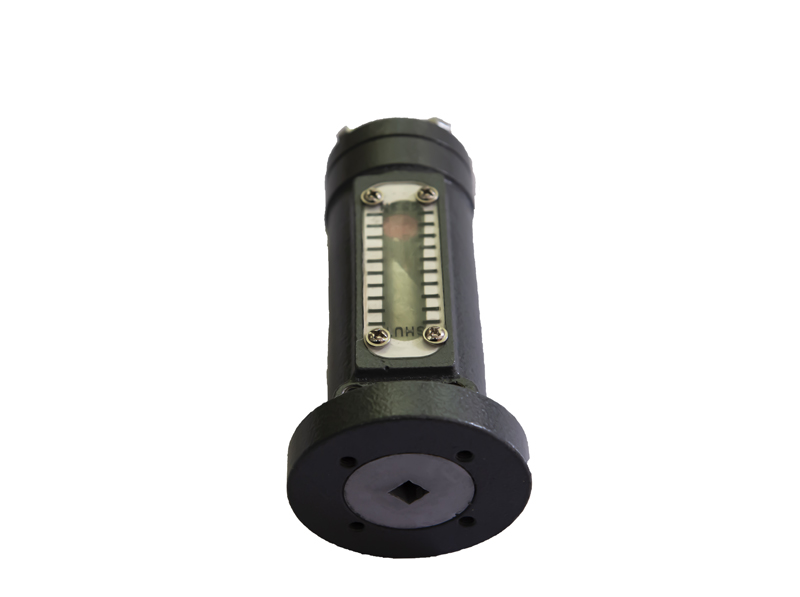

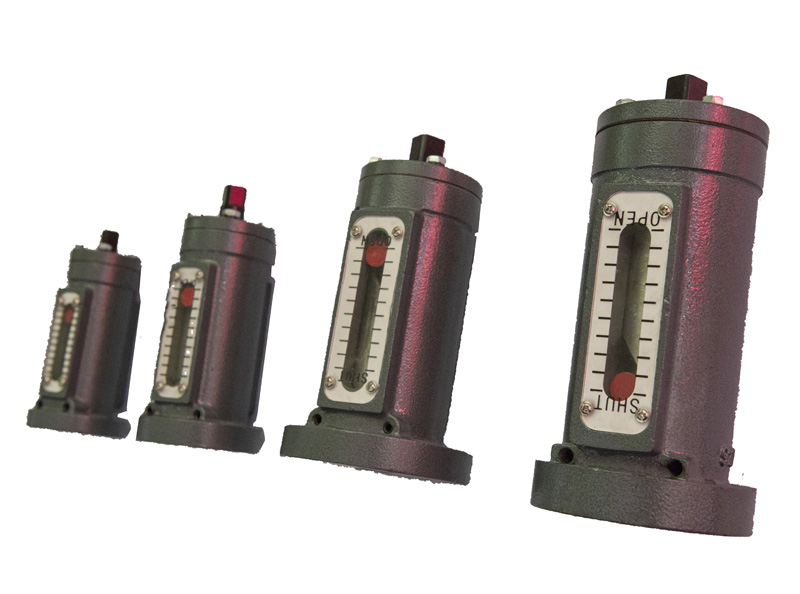

LX Series Spiral manual actuator

  • LX Series Spiral manual actuator
  • LX Series Spiral manual actuator
LX Series Spiral manual actuatorLX Series Spiral manual actuator

LX Series Spiral manual actuator

  • Product description: It adopts screw nut and spiral drive sleeve, can be used on ball valves,butterfly valves,regularing valves.etc. which widely used on marine valves and underground valves.
  • INQUIRY

Model
Valve Size
suggested
Output Torque
(Nm)

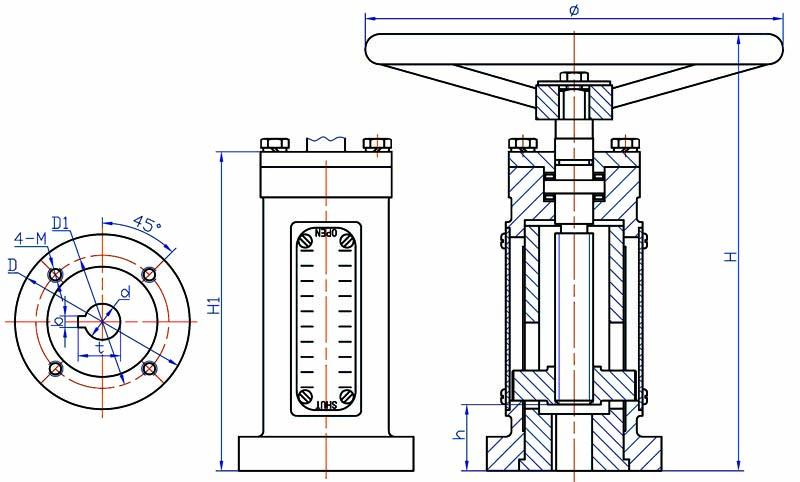

d b t D D1 4-M H H1 Φ h
LX10 2"-3" 100 12.7 3 14.1 77 50 4-M6 200 145 150 32
LX20 4" 200 15.9 5 18.2 90 70 4-M8 230 168 200 35
5"-6" 19.05 5 21.35 90 70 4-M8 230 168 200 35
LX50 8" 500 22.2 5 24.5 125 102 4-M10 259 200 250 44
10" 28.3 8 31.9 125 102 4-M10 259 200 250 44
LX60 12" 750 31.8 8 35.1 125 102 4-M10 293 230 300 46
LX120 14" 1200 31.8 8 35.1 170 140 4-M16 350 271 380

50
