RD-V series bevel gear box
RD-V series bevel gear box

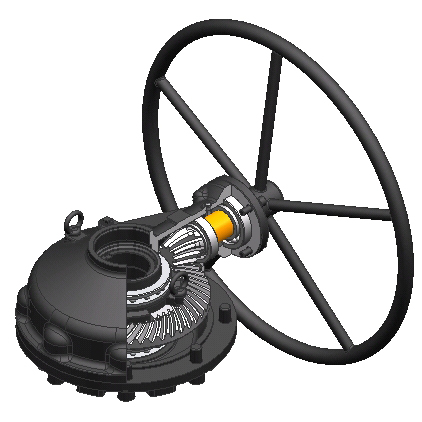

- Product description: Complete range of multi-turn bevel gear box suitalbe for most demanding manual and motorised applications. Widely used on gate valve,globe valve and sluice gates.etc. The main materials are cast steel, ductile iron, etc;Optional material: low temperature steel,stainess steel.
| MODEL | Gear Ratio | Max Stem Diameter | Max Thrust Capacity | Max Output Torque | M.A. | Weight | ||
| mm | KN | Kgf | N.m | in-lbs | ±10% | Kg | ||
| RD-VS10 | 2.5:1 | 22 | 75 | 7653 | 220 | 1947 | 2.1 | 9 |
| RD-VS20 | 3:1 | 28 | 113 | 11531 | 350 | 3097 | 2.5 | 12 |
| RD-V0 | 3:1 | 36 | 127 | 12959 | 550 | 4867 | 2.5 | 18 |
| RD-V1 | 3.6:1 | 42 | 141 | 14388 | 900 | 7965 | 3.1 | 23 |
|
Technical data
RD-V2
|
4.1:1 | 50 | 190 | 19388 | 1200 | 10619 | 3.5 | 34 |
| RD-V3 | 4.5:1 | 60 | 268 | 27347 | 1800 | 15929 | 3.8 | 45 |
| RD-V35 | 5.2:1 | 70 | 308 | 31428 | 2800 | 24779 | 4.4 | 83 |
| RD-V4 | 5.7:1 | 80 | 402 | 41020 | 3500 | 30973 | 4.8 | 143 |
| RD-V5 | 6.3:1 | 95 | 512 | 52245 | 7000 | 61947 | 5.4 | 190 |
| RD-V6 | 6.3:1 | 110 | 1110 | 113265 | 12000 | 106195 | 5.4 | 277 |
| RD-V2-1S | 13.3:1 | 50 | 190 | 19387 | 1400 | 12389 | 9.6 | 55 |
| RD-V3-1S | 19.9:1 | 60 | 268 | 27347 | 2500 | 22124 | 14.3 | 70 |
| RD-V35-1S | 23:1 | 70 | 308 | 31428 | 4000 | 35398 | 16.5 | 107 |
| RD-V4-1S | 38.5:1 | 80 | 402 | 41020 | 5000 | 44248 | 28 | 186 |
| RD-V5-1S | 42.8:1 | 95 | 512 | 52245 | 9000 | 79646 | 31 | 230 |
| RD-V6-1S | 42.8:1 | 110 | 1110 | 113265 | 15000 | 132743 | 31 | 320 |
| RD-V7-1S | 94.4:1 | 120 | 1310 | 133673 | 20000 | 176991 | 68 | 460 |
| RD-V8-1S | 112:1 | 140 | 2140 | 218367 | 30000 | 265487 | 81 | 690 |
| RD-V9-1S | 143.5:1 | 180 | 4000 | 408163 | 50000 | 442478 | 103 | 1150 |

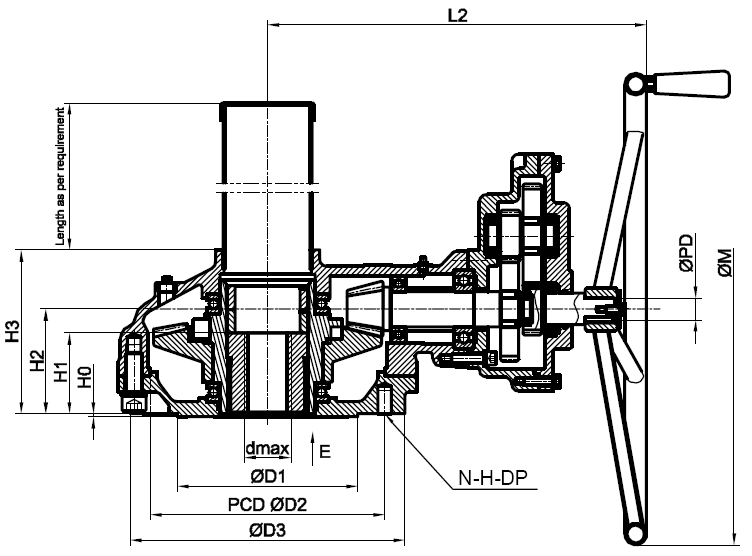

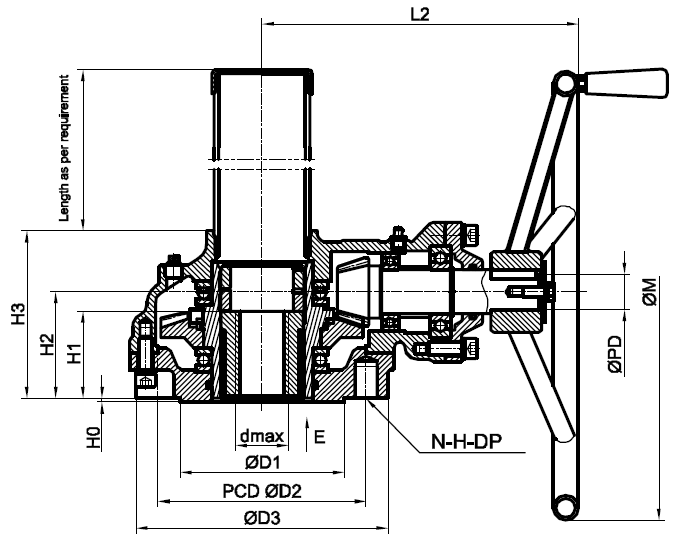

MODEL
BASE PART
EXTERNAL PART
INPUT SHAFT PART
TYPE
FLANGE SIZE
ΦD1
P.C.D
ΦD3
H
H1
H2
H3
L2
L
D2
N-H-DP
L1
ΦPD
KEY
ΦM
RD-VS10
A
F-10
70
102
4-M10-15
125
3
47
70
104
186
131
36
26
8X7
300
RD-VS20
F-12
85
125
4-M12-18
150
49
70
113
195
140
RD-V0
F-14
100
140
4-M16-24
175
4
58
78
124
230
165
40
28
400
RD-V1
F-14
130
165
4-M20-30
210
5
69
84.5
133
247
182
40
450
RD-V2
B
(F-20)
140
205
8-M16-24
250
5
69
87
145
276
202
40
32
10X8
500
RD-V3
F-25
200
254
8-M16-24
300
82
95
159
311
226
47
600
RD-V35
F-30
230
298
8-M20-35
350
103
133
208
381
296
57
650
RD-V4
F-35
260
356
8-M30-45
415
146
149
246
437
352
60
38
10X8
700
RD-V5
F-35
260
356
8-M30-45
415
159
172
276
444
359
51
38
10X8
700
RD-V6
F-40
300
406
8-M36-54
475
8
174
209
348
461
376
63
50
16X10
800
RD-V2-1S
A
(F-20)
140
205
8-M16-24
250
5
69
87
145
375
310
40
28
8X7
450
RD-V3-1S
F-25
200
254
8-M16-24
300
82
94.5
159
403
338
40
28
8X7
500
RD-V35-1S
F-30
230
298
8-M20-35
350
103
133
208
489
404
40
28
8X7
600
RD-V4-1S
F-35
260
356
8-M30-45
415
146
149
246
563
478
51
38
10X8
650
RD-V5-1S
F-35
260
356
8-M30-45
415
159
172
276
570
485
51
38
10X8
700
RD-V6-1S
F-40
300
406
8-M36-54
475
8
174
209
348
593
508
51
38
10X8
700
RD-V7-1S
B
F-48
370
483
12-M36-54
560
8
196
219
346
646
561
52
45
14X9
800
RD-V8-1S
C
F-60
470
603
20-M36-54
700
8
217
237
382
687
602
52
45
14X9
800
RD-V9-1S
F-60
470
603
20-M36-54
805
8
242
260
445
831
746
52
45
14X9
1000
